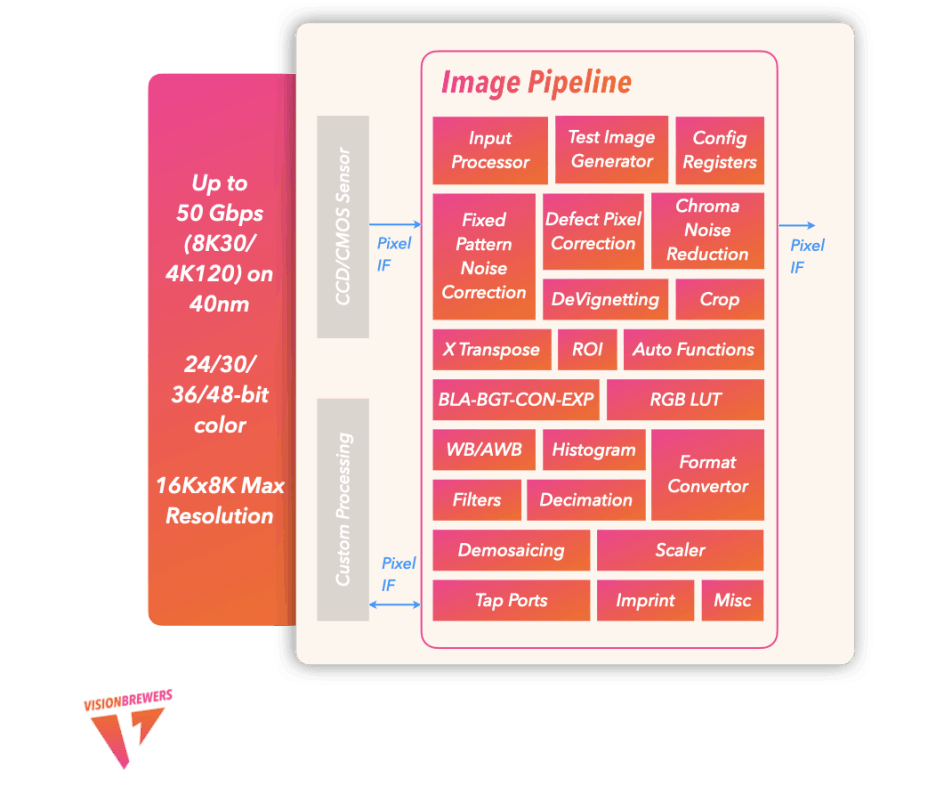

IPL is custom confurable to have any desired function in the desired number of instances, and in the desired sequence workable for the function. It can process 16Kx8k streaming resolution.

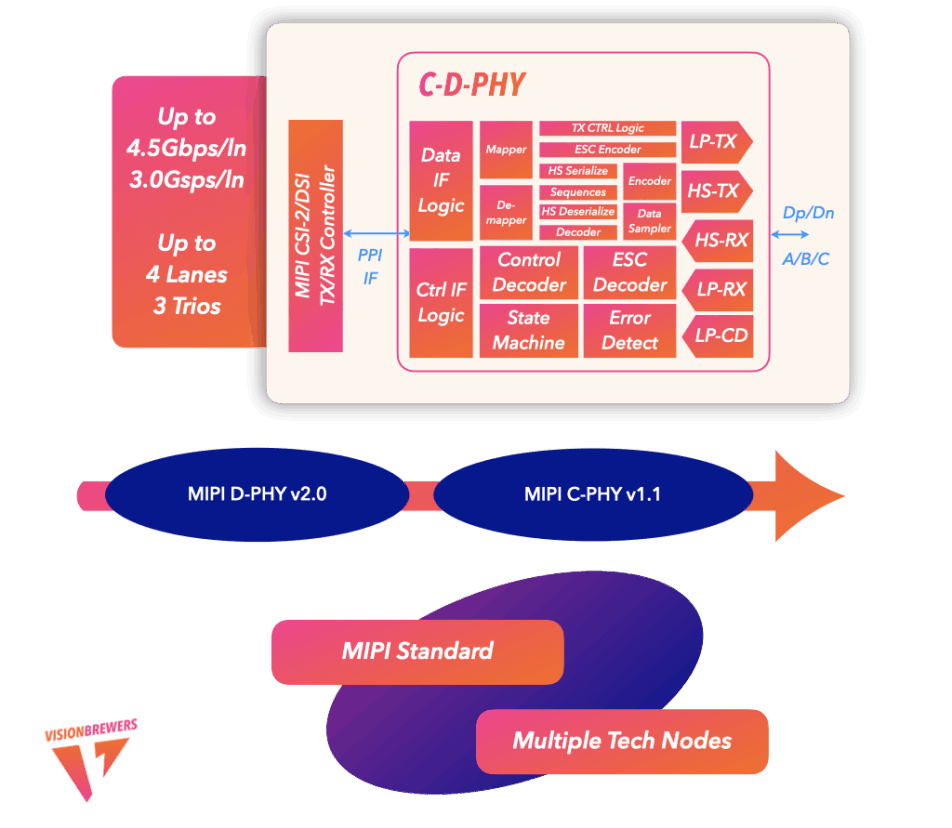

MIPI Standard is used in data transfer between Cameras and Displays and Processors. It has both TX and RX devices, depending on the processor side or the edge. The data is transferred on different PHYs based on the datarate and features. Two most popular ones are D-PHY and C-PHY, along with traditional LVDS.

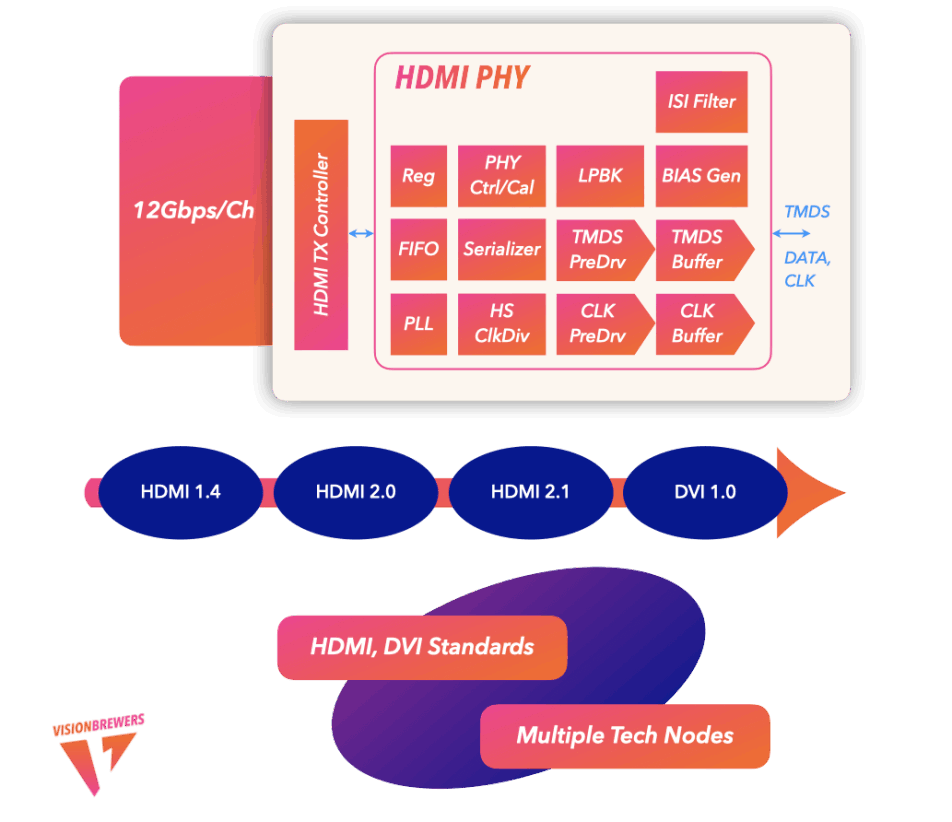

With a transmission rate up to 12Gb/s per channel, it supports 3D and resolutions from 480i to 8K@60/50Hz. Optimized for both area and power, this HDMI solution contains all necessary PHY components including high speed I/Os, primary and secondary ESD, and PLL along with video, audio and control processing units.

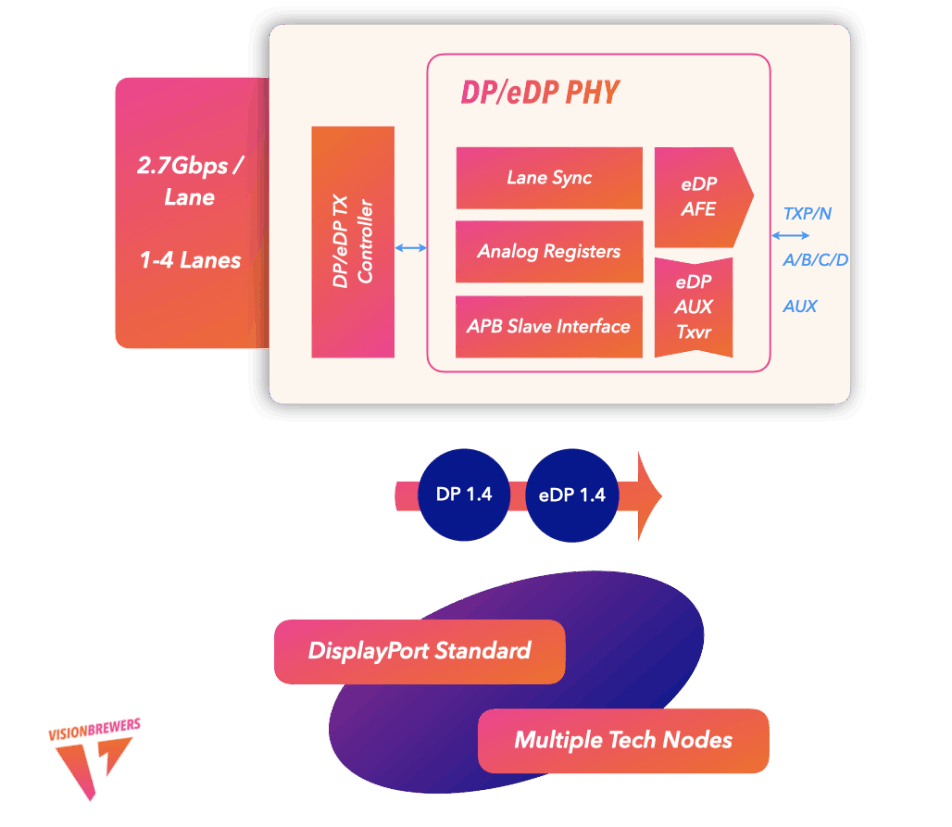

This is fully compliant with DP 1.4 and eDP 1.4 standards, and capable of driving 2.7Gb/s per lane in configurations up to 4 lanes. Designed with ease of integration in mind, it is configurable via its I2C, APB or CPU interface, and production testing is simplified through at-speed BIST, scan, loopback modes and boundary scan.

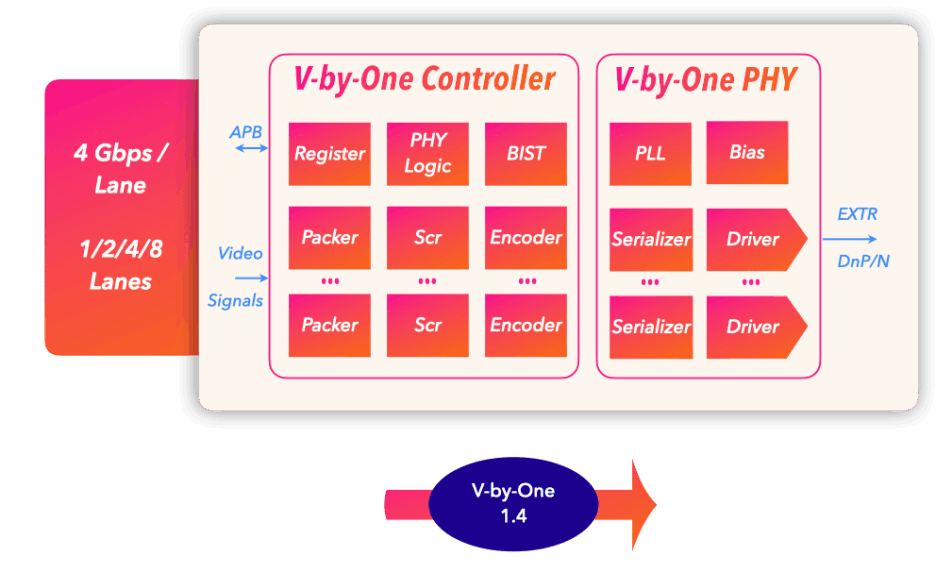

V-by-One TX/RX IP is designed for video data transmission from a video source device to a display device. With up to 8-lane configuration and data rate up to 4Gbps per lane, V-by-One TX/RX IP supports video format up to 2160P/60Hz.
